Pumping of domestic, municipal and industrial effluent and waste water, sewage, sludge and liquid chemicals. Also suitable for liquids with solid and fiber content.

Installation

Single-stage submersible pumps in close-coupled design for permanent or transportable usage.

Materials

Motor housing (Stainless steel 1.4436), Pump housing (Stainless steel 1.4408 or Stainless steel 1.4517), Impeller (Stainless steel 1.4408 or Stainless steel 1.4517), Wear ring (Stainless steel), Motor shaft (Stainless steel 1.4462), Bolts (Stainless steel), Elastomeres (FPM, Viton), Cable jacket (Polyolefine), Mechanical seal on medium side (SiC / SiC, Viton), Mechanical seal on motor side (SiC / SiC, Viton), Upper Bearing (Deep Groove Ball Bearing), Lower Bearing (Two angular ball bearings).

Pumped liquid

Max. medium temperature: 40 °C, short term up to 60 °C.

Motor

Electric motors, with 2-, 4-, or 6-pole motor speed. Insulation class H (180°C), degree of protection IP 68.

Shaft/Bearing

Large diameter stainless steel rotor shaft, pre-lubricated bearings.

Explosion protection

In addition to the standard version, all motors are available explosion proof according to II 2 G Ex c d [e] [ib] IIB T4, T3.

Seals

Two independently working silicon-carbide mechanical seals in tandem-arrangement. Oil-filled seal chamber with possibility of control by the inspection screw.

Features

Robust pump unit completely made from stainless steel suitable also for corrosive liquids. Construction made from premium components as well as standard equipped with protection devices to guarantee extended life time and high grade of reliability.

Impeller

Impeller of the CMX(S) series.

For optimum adaptation to the pump medium and operating conditions.

Enclosed single-channel impeller

For dirty and muddy fluids with solid and long-fibre fractions.

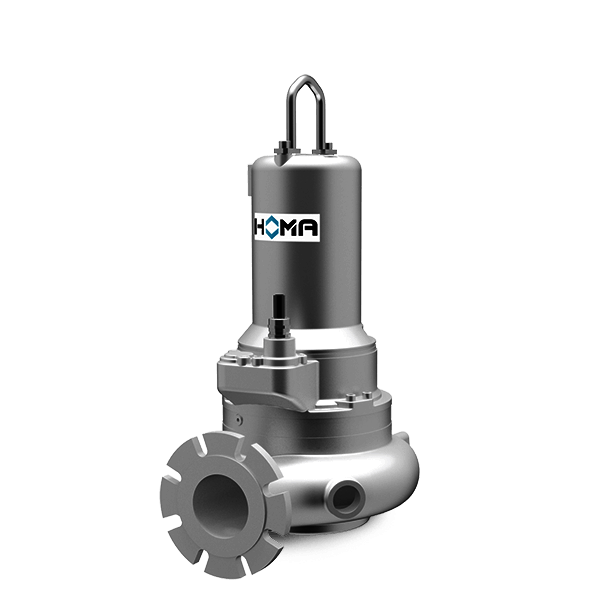

Stainless steel sewage pumps

Open gallery

The network frequency is 50 Hz in the EU.
In other parts of the world, such as in the North American region, Brazil, Saudi Arabia or South Korea 60 Hz.

HOMA pumps are available for both frequency ranges. A selection of the pumps for the valid frequency range at the installation site must be made accordingly. We are happy to assist you in the selection of the right pumps.
