Pump is suitable for pumping sewage, effluents, sludge, surface water, liquids containing a high level of impurities or fibrous matter and liquids containing gas.

Installation

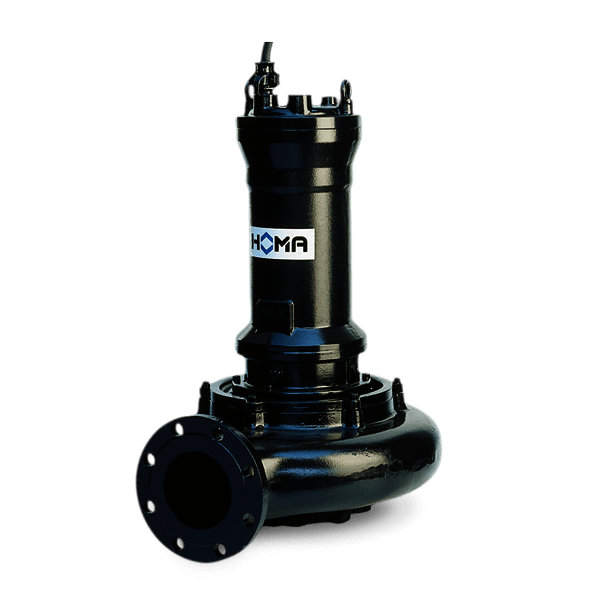

Single-stage submersible pumps in close-coupled design for permanent or transportable usage.

Materials

Motor housing (Grey cast iron EN-GJL-250), Pump housing (Grey cast iron EN-GJL-250), Impeller (Grey cast iron EN-GJL-250), Motor shaft (Stainless steel 1.4104), Bolts (Stainless steel), Elastomeres (Nitrile Rubber), Mechanical seal on medium side (SiC / SiC), Mechanical seal on motor side (SiC / SiC), Upper Bearing (Deep Groove Ball Bearing), Lower Bearing (Two angular ball bearings).

Pumped liquid

Max. medium temperature: 40 °C.

Motor

Three phase electric motor with 2-, 4-, or 6-pole winding. Insulation class H (180 C), Protection IP 68. With seal monitoring in the oil barrier chamber as standard.

Shaft/Bearing

Large diameter stainless steel rotor shaft, pre-lubricated bearings.

Explosion protection

In addition to the standard version, all motors are available explosion proof according to II 2 G Ex c d [e] [ib] IIB T4, T3.

Seals

Two independently working silicon-carbide mechanical seals in tandem-arrangement. Oil-filled seal chamber with possibility of control by the inspection screw.

Impeller

Impeller of the V(X) series.

For optimum adaptation to the pump medium and operating conditions.

Vortex impeller

For coarse and fibrous polluted, braid-forming and gaseous media.

The network frequency is 50 Hz in the EU.
In other parts of the world, such as in the North American region, Brazil, Saudi Arabia or South Korea 60 Hz.

HOMA pumps are available for both frequency ranges. A selection of the pumps for the valid frequency range at the installation site must be made accordingly. We are happy to assist you in the selection of the right pumps.
